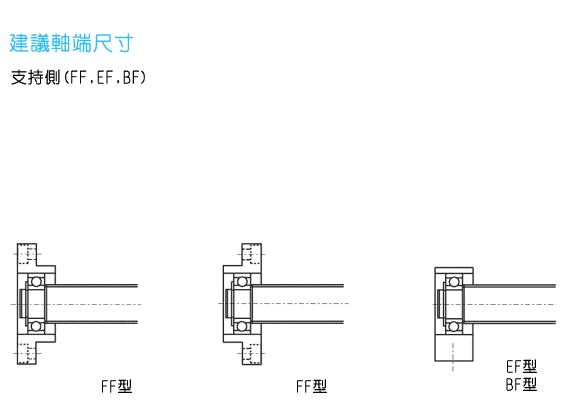

建議軸端尺寸(支持側) (BF,FF,EF )
|
型號.
|
滾珠螺桿外徑
|
軸承部軸外徑
|
|||
|
d
|
A
|
E
|
|||
|
FF 06
|
EF 06
|
|
8
|
6
|
9
|
|
FF 10
|
EF 10
|
BF 10
|
12/14/15
|
8
|
10
|
|
FF 12
|
EF 12
|
BF 12
|
14/15/16
|
10
|
11
|
|
FF 15
|
EF 15
|
BF 15
|
18/20
|
15
|
13
|
|
-
|
-
|
BF 17
|
20/25
|
17
|
16
|
|
FF 20
|
EF 20
|

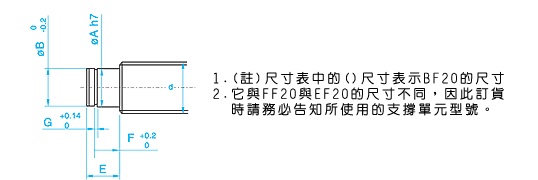

(BF20)Note
|
25/28/30
|
20
|
19 (16)
|
|
FF 25
|
-
|
BF 25
|
30/32/36
|
25
|
20
|
|
FF 30
|
-
|
BF 30
|
36/40
|
30
|
21
|
|
-
|
-
|
BF 35
|
40/45
|
35
|
22
|
|
-
|
-
|
BF 40
|
50
|
40
|
23
|
|
型號.
|
扣環溝槽
|
||||
|
|
|
|
B
|
F
|
G
|
|
FF 06
|
EF 06
|
|
5.7
|
6.8
|
0.8
|
|
FF 10
|
EF 10
|
BF 10
|
7.6
|
7.9
|
0.9
|
|
FF 12
|
EF 12
|
BF 12
|
9.6
|
9.15
|
1.15
|
|
FF 15
|
EF 15
|
BF 15
|
14.3
|
10.15
|
1.15
|
|
-
|
-
|
BF 17
|
16.2
|
13.15
|
1.15
|
|
FF 20
|
EF 20
|
(BF20)Note
|
19
|
15.35(13.35)
|
1.35
|
|
FF 25
|
-
|
BF 25
|
23.9
|
16.35
|
1.35
|
|
FF 30
|
-
|
BF 30
|
28.6
|
17.75
|
1.75
|
|
-
|
-
|
BF 35
|
33
|
18.75
|
1.75
|
|
-
|
-
|
BF 40
|
38
|
19.95
|
1.95
|
