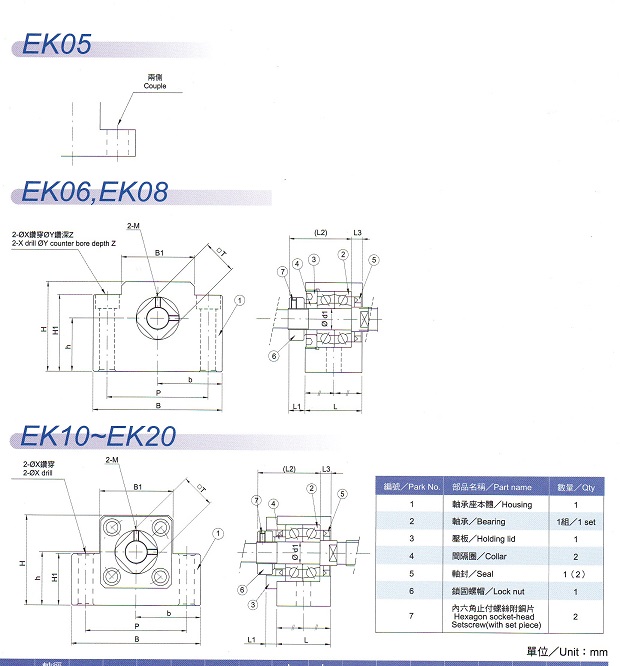

螺桿支撐座 (EK)
|
公稱型號.
|
d1
|
L
|
L1
|
L2
|
L3
|
B
|
H
|
d
|
h
|
B1
|
H1
|
P
|
X
|
Y
|
Z
|
|
EK 4
|
4
|
15
|
5.5
|
17.5
|
3
|
34
|
19
|
17
|
10
|
18
|
7
|
26
|
4.5
|
-
|
-
|
|
EK 5
|
5
|
16.5
|
5.5
|
18.5
|
3.5
|
36
|
21
|
18
|
11
|
20
|
8
|
28
|
4.5
|
-
|
-
|
|
EK 6
|
6
|
20
|
5.5
|
22
|
3.5
|
42
|
25
|
21
|
13
|
18
|
20
|
30
|
5.5
|
9.5
|
11
|
|
EK 8
|
8
|
23
|
7
|
26
|
4
|
52
|
32
|
26
|
17
|
25
|
26
|
38
|
6.6
|
11
|
12
|
|
EK 10
|
10
|
24
|
6
|
29.5
|
6
|
70
|
43
|
35
|
25
|
36
|
24
|
52
|
9
|
-
|
-
|
|
EK 12
|
12
|
24
|
6
|
29.5
|
6
|
70
|
43
|
35
|
25
|
36
|
24
|
52
|
9
|
-
|
-
|
|
EK 15
|
15
|
25
|
6
|
36
|
5
|
80
|
49
|
40
|
30
|
41
|
25
|
60
|
11
|
-
|
-
|
|
EK 20
|
20
|
42
|
10
|
50
|
10
|
95
|
58
|
47.5
|
30
|
56
|
25
|
75
|
11
|
-
|
-
|
